Pipeline Sealing Equipment – Rubber Water Stop

Rubber inflatable pipe plug

Rubber inflatable pipe plug is an efficient pipeline sealing device, widely used in various industries, including water supply and drainage, civil engineering, firefighting, and rescue operations. It is primarily used for temporarily sealing pipelines to facilitate maintenance, cleaning, or other operations.

When flow control is needed, the rubber inflatable pipe plug is inserted into the pipeline. Air is injected into the bladder through an inflation device, causing the bladder to expand and make tight contact with the pipeline wall. In this way, the flow of water or other liquids within the pipeline is effectively blocked, ensuring the safety and dryness of the work area.

Specifications:

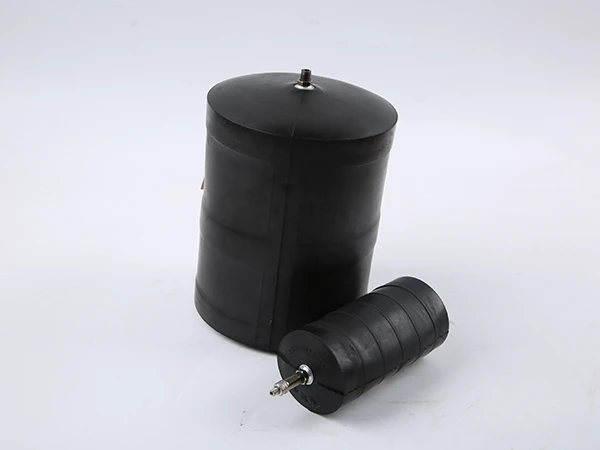

Rubber inflatable pipe plug detail

  • Material: Natural rubber, synthetic rubber materials (such as nitrile rubber, neoprene, etc.).
  • Pressure rating: 0.1-1.0 MPa.
  • Diameter range: The diameter range of rubber water stops is wide, from a few centimeters to several tens of centimeters, to accommodate different sizes of pipes (customizable).
  • Length: The length of the rubber water stop varies according to the length of the pipe and the sealing requirements (customizable).
  • Inflatable equipment: Air pump or blower
Table 1: Rubber Inflatable Pipe Plug Specification
Item Classification DN (mm/inch) Length Weight (kg/set)
1 Natural rubber water plug/PVC 50/2" 110 mm 0.10
2 75/3" 130 mm 0.16
3 100/4" 150 mm 0.30
4 150/6" 190 mm 0.60
5 200/8" 230 mm 0.85
6 250/10" 280 mm 1.30
7 300/12" 330 mm 2.10
8 400/16" 440 mm 5.10
9 500/20" 610 mm 8.00
10 600/24" 710 mm 9.50
11 2 layers rubber and 1 layer cloth 300 1 m 4.50
12 400 1 m 6.50
13 500 1 m 8.00
14 600 1 m 10.00
15 700 1.05 m 12.50
16 800 1.20 m 16.50
17 900 1.35 m 20.50
18 1000 1.50 m 25.50
19 1100 1.65 m 30.50
20 1150 1.725 m 33.30
21 1200 1.80 m 36.50
22 1500 2.25 m 50.00
23 1600 2.40 m 56.50
24 1800 2.70 m 71.50

Features:

  • Good sealing performance
  • Strong adaptability
  • Easy installation
  • Economical and practical
  • Corrosion resistant
  • Environmentally friendly and safe

Applications:

  • Pipeline maintenance
  • Pipeline inspection
  • Drainage system maintenance
  • Industrial pipeline cleaning
  • Construction

Pipeline maintenance

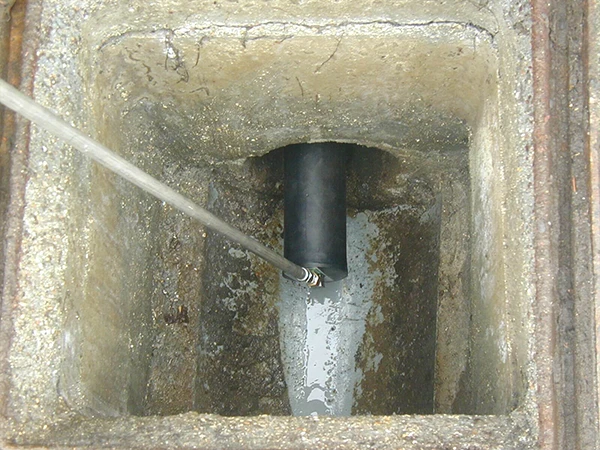

Drainage system maintenance

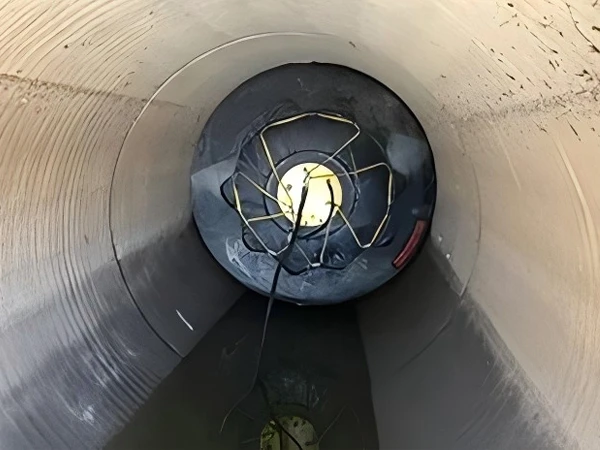

Industrial pipeline cleaning
