Polyethylene Closed Cell Foam Board Has a Sealed Porous Structure

Polyethylene closed cell foam board

Polyethylene closed cell foam board is a joint waterstop material made from a mixture of high-pressure polyethylene particles, crosslinking agents, foaming agents, and other raw materials. Its production process includes internal mixing, open mixing, vulcanization, and high-temperature mold shaping. Polyethylene closed cell foam board features a unique closed-cell bubble structure, with an appearance of uniformly distributed honeycomb-like holes, capable of tightly bonding with cement adhesives, demonstrating excellent waterproof and sealing performance.

Specifications

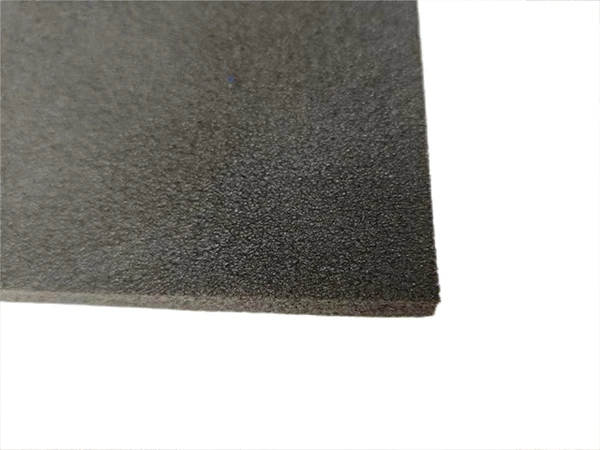

Detail

  • Material: High molecular polyethylene
  • Color: Black
  • Common Specifications: (1400-1800) mm × (3000-4000) mm × 50 mm (Can be cut and processed into boards, strips, etc., with thicknesses ranging from 5-50 mm according to user requirements, with sheet cutting size errors ranging from ±0.2 to ±1.)
  • Performance:
    Table 1: Polyethylene Closed Cell Foam Board Physical and Mechanical Properties Table
    Test Items Unit Test Results
    Density kg/m³ ≥90
    Tensile Strength MPa ≥0.9
    Tear Strength kg/m² ≥3.5
    Compressive Strength kg/m² ≥130
    Compression Set % ≥0.7
    Elongation % ≥70
    Water Absorption ɡ/m³ ≤ 8

Feature

  • Stability: Low density, high recovery rate, with an independent bubble structure.
  • Waterproof Performance: Low surface water absorption, good impermeability.
  • Temperature Resistance: Does not flow (does not melt) at high temperatures, does not crack at low temperatures.
  • Corrosion resistance: Resistant to alkali, acid, salt, oil, and other organic solvents, with excellent aging resistance.

Applications

  • Highways, expressways, underpasses, subways
  • Power plant moisture-proof rooms, cooling towers
  • Bridgehead expansion joints, overpasses, elevated bridges
  • Hydropower concrete projects, dam slope protection

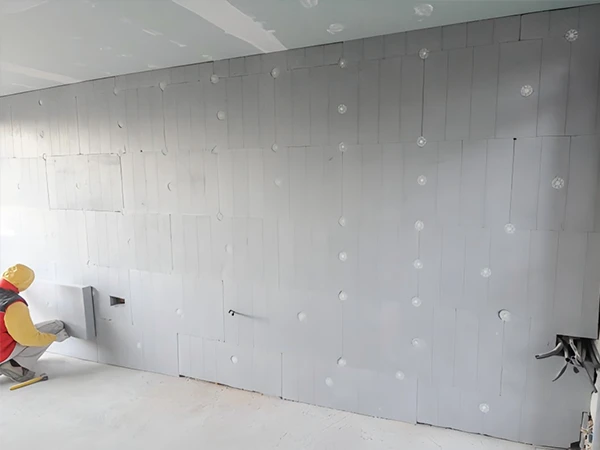

  • Home renovation

Home renovation
