Stainless Steel Waterstop to Prevent Corrosive Liquids

Two stainless steel waterstops are placed on the ground.

SSW-01: Stainless steel waterstop

Stainless steel waterstop, in a range of grades and gauges, features excellent corrosion resistance to prevent the most corrosive or aggressive fluids leaking into the joints. Meanwhile, it is a good choice for ozone, corrosive even extremely elevated temperature environments.

To reduce the butt-welding during installation, a series of prefabricated stainless steel waterstops including flat or vertical L, T and cross are available for all direction changes.

Features & benefits:

  • Quality material - 20 gauge 316L stainless steel materials.
  • Broad spectrum corrosion resistance.
  • Withstand high temperature.
  • Not susceptible to ozone and aggressive media.
  • Fire-proofing.

Application:

  • Ozone contractor structures.
  • Water treatments.
  • Bund wall joints.
  • Chemical industrials.
Several workers are installing the stainless steel waterstops onto the reinforcing bar frame.

SSW-02: Stainless steel waterstop is easy to installed onto reinforcing bars.

Stainelss steel waterstops are fixed onto the foundation of building.

SSW-03: Stainless steel waterstops are important components for building construction.

Properties

Physical properties Test method Value
Tensile strength ASTM A-370 75,000 psi (515 Mpa)
Duct elongation in 2” ASTM A-370 60% (min)
Rockwell B hardness ASTM A-370 95 (max)
Yield strength ASTM A-370 30,000 psi (205 Mpa)

Types:

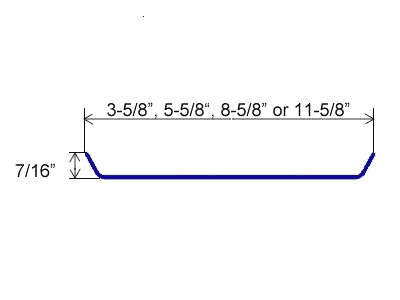

The plan drawing of stainless steel waterstop SSW-04

SSW-04: Stainless steel waterstop SSW-04

The plan drawing of stainless steel waterstop SSW-05

SSW-05: Stainless steel waterstop SSW-05

The plan drawing of stainless steel waterstop SSW-06

SSW-06: Stainless steel waterstop SSW-06

The plan drawing of stainless steel waterstop SSW-07

SSW-07: Stainless steel waterstop SSW-07

The plan drawing of stainless steel waterstop SSW-08

SSW-08: Stainless steel waterstop SSW-08

The plan drawing of stainless steel waterstop SSW-08

SSW-08: Stainless steel waterstop SSW-08
